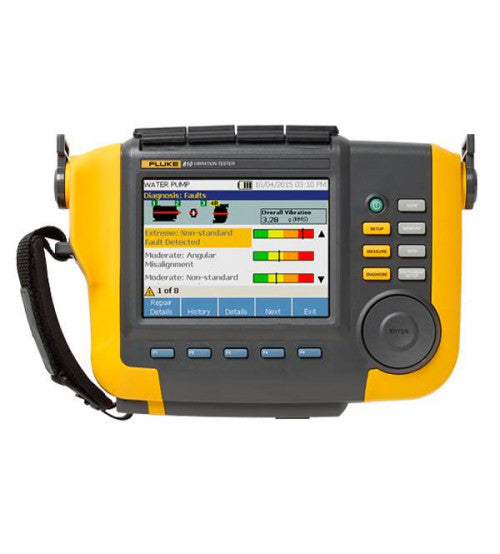

جهاز قياس اهتزاز FLUKE 810

جهاز قياس اهتزاز FLUKE 810 مخصص لـفحص اهتزاز المعدات ضمن أعمال الصيانة. راجع المواصفات والتوافق لتحديد ملاءمته لمهمتك قبل الشراء.

الهوية والاستخدام

• نوع المنتج: جهاز قياس اهتزاز.
• مرجع الاختيار: FLUKE 810.
• الاستخدام: فحص اهتزاز المعدات ضمن أعمال الصيانة.

كيف تختار المنتج المناسب؟

اعتمد الموديل والمقاس ونوع التوصيل أو الملحقات المتوافقة، ولا تعتمد على تشابه الاسم وحده.

للمشترين في السعودية

قارن FLUKE 810 لدى شركة الصندوق الآمن SafeBox وفق احتياجك الفني والمواصفات الموضحة، واستخدم رقم الموديل عند طلب مطابقة المنتج.

التفاصيل الفنية الأصلية باللغة الإنجليزية

Fluke 810 Vibration Tester: When you need an answer now...

Control unplanned downtime, prevent recurring problems, set repair priorities and manage your resources with an entirely new approach to vibration testing.

The Fluke 810 Vibration Tester is the most advanced troubleshooting tool for mechanical maintenance teams who need an answer now. The unique diagnostic technology helps you quickly identify and prioritize mechanical problems, putting the expertise of a vibration analyst in your hands.

You take pride in your facility, your team, and your work. You do what it takes to keep things up and running, but sometimes there is not enough time or resources to keep up with the workload, let alone be proactive about mechanical maintenance. The Fluke 810 Vibration Tester puts you one step ahead by coupling a powerful diagnostic engine with a simple step-by-step process to report on specific machine faults and their severity the first time measurements are taken, without prior measurement history. Overall vibration measurements and spectral diagrams give technicians the ability to quickly asses overall machine health, while enhanced reporting and actionable recommendations give you the confidence you need to address critical problems first.

Available at select distributors.

• Features and benefits

  • On-board identification and location of the most common mechanical faults (bearings, misalignment, unbalance, looseness) focus maintenance efforts on root cause, reducing unplanned downtime
  • Overall vibration level allows you to quickly assess overall machine health directly from the diagnosis screen
  • Fault severity scale with four severity levels helps you prioritize maintenance work
  • Repair recommendations advise technicians on corrective action
  • Detailed diagnostic reports and spectral diagrams help confirm data quality, and narrow down the root cause of failures
  • On-board context sensitive help provides real-time tips and guidance to new users
  • Flexible machine speed configurations gives the ability to test a broad range of assets including belt drives, gear boxes, and bevel gears
  • 2 GB expandable on-board memory provides enough space for your machinery’s data
  • Self-test function ensures optimal performance and more time on the job
  • Laser tachometer for accurate machine running speed promotes confident diagnoses
  • Tri-axial accelerometer reduces measurement time by 2/3 over single axis accelerometers
  • Viewer PC Software expands data storage and tracking capacity

  Use the Fluke 810 Vibration Tester to:

  • Troubleshoot problem equipment and understand the root cause of failure
  • Survey equipment before and after planned maintenance and confirm the repair
  • Commission new equipment and ensure proper installation
  • Provide quantifiable proof of equipment condition and drive investment in repair or replacement
  • Prioritize and plan repair activities and operate more efficiently
  • Anticipate equipment failures before they happen and take control of spare parts inventories
  • Train new or less-experienced technicians and build confidence and skill across the team

  The Fluke 810 helps you locate and diagnose common mechanical problems and prioritize repair actions in three simple steps:


   Vibration testing has never been easier.
  The 810 asks for basic machine information you already know. Its onboard Info Feature gives you field tips for setting up and taking measurements like a pro.



   Fluke 810 fits easily into your maintenance routine.
  Use it to quickly troubleshoot problems or monitor machine conditions.



   No more guessing your machine’s condition.
  With the press of a button, the Fluke 810 identifies the root cause, its location, and how severe it is. Fix it right the first time.

  • Diagnostic Specifications
    Standard Faults	Unbalance, looseness, misalignment and bearing failures
    Analysis For	Motors, fans, blowers, belts and chain drives, gearboxes, couplings, centrifugal pumps, piston pumps, sliding vane pumps, propeller pumps, screw pumps, rotary thread/gear/lobe pumps, piston compressors, centrifugal compressors, screw compressors, closed coupled machines, spindles
    Machine Rotational Speed Range	200 rpm to 12000 rpm
    Diagnosis Details	Plain-text diagnosis, fault severity (slight, moderate, serious, extreme), repair details, cited peaks, spectra
    Electrical Specifications
    Ranging	Automatic
    A/D Converter	4 channel, 24 bit
    Usable Bandwidth	2 Hz to 20 kHz
    Sampling	51.2 Hz
    Digital Signal Processing Functions	Automatically configured anti-alias filter, high-pass filter, decimation, overlapping, windowing, FFT, and averaging
    Sampling Rate	2.5 kHz to 50 kHz
    Dynamic Range	128 dB
    Signal To Noise Ratio	100 dB
    FFT Resolution	800 lines
    Spectral Windows	Hanning
    Frequency Units	Hz, orders, cpm
    Amplitude Units	in/sec, mm/sec, VdB (US), VdB* (Europe)
    Non-volatile Memory	SD micro memory card, 2 GB internal + user accessible slot for additional storage
    General Specifications
    Dimensions (H x D x W)	18.56 x 7.00 x 26.72 cm (7.30 x 2.76 x 10.52 in)
    Weight (With Battery)	1.9 kg (4.2 lb)
    Display	¼ VGA, 320 × 240 Color (5.7 inch diagonal) TFT LCD with LED backlight
    Input/Output Connections	Triaxial sensor connection	4 pin M12 connector
    	Single axis sensor connection	BNC connector
    	Tachometer Connection	Mini DIN 6 pin connector
    	PC Connection	Mini ‘B’ USB (2.0) connector
    Battery	Battery type	Lithium-ion, 14.8 V, 2.55 Ah
    	Battery charging time	Three hours
    	Battery discharge time	Eight hours (under normal conditions)
    AC Adapter	Input voltage	100 VAC to 240 VAC
    	Input frequency	50/60 Hz
    Operating System	WinCE 6.0 Core
    Language Support	English, French, German, Italian, Japanese, Portuguese, Simplified Chinese, Spanish
    Warranty	Three-years
    Environmental Specifications
    Operating Temperature	0°C to 50°C (32°F to 122°F)
    Storage Temperature	-20°C to 60°C (-4°F to 140°F)
    Operating Humidity	10% to 95% RH (non-condensing)
    Agency Approvals	CHINA RoHS, CSA, CE, C TICK, WEEE
    Electromagnetic Compatibility	EN 61326-1:2006, EN 61010:1:2001 2nd ed.
    Sensor Specifications
    Sensor Type	Accelerometer
    Sensitivity	100 mV/g (±5%, 25°C)
    Acceleration Range	80 g peak
    Amplitude Nonlinearity	1%
    Frequency Response	Z	2 - 7,000 Hz ±3dB
    	X, Y	2 - 5,000 Hz ±3dB
    Power Requirement (IEPE)	18 VDC to 30 VDC, 2 mA to 10 mA
    Bias Output Voltage	12 VDC
    Grounding	Case grounded
    Sensing Element Design	PZT ceramic / shear
    Case Material	316L stainless steel
