مسبار قياس تيار FLUKE i30s

5,203.98 SR

Quantity (Please contact us to confirm product availability)

+ -

Product description

مسبار قياس تيار FLUKE i30s

مسبار قياس تيار FLUKE i30s مخصص لـتوصيل أجهزة القياس المتوافقة لفحص التيار الكهربائي. راجع المواصفات والتوافق لتحديد ملاءمته لمهمتك قبل الشراء.

الهوية والاستخدام

نوع المنتج: مسبار قياس تيار.
مرجع الاختيار: FLUKE i30s.
الاستخدام: توصيل أجهزة القياس المتوافقة لفحص التيار الكهربائي.

كيف تختار المنتج المناسب؟

اعتمد الموديل والمقاس ونوع التوصيل أو الملحقات المتوافقة، ولا تعتمد على تشابه الاسم وحده.

للمشترين في السعودية

قارن FLUKE i30s لدى شركة الصندوق الآمن SafeBox وفق احتياجك الفني والمواصفات الموضحة، واستخدم رقم الموديل عند طلب مطابقة المنتج.

التفاصيل الفنية الأصلية باللغة الإنجليزية

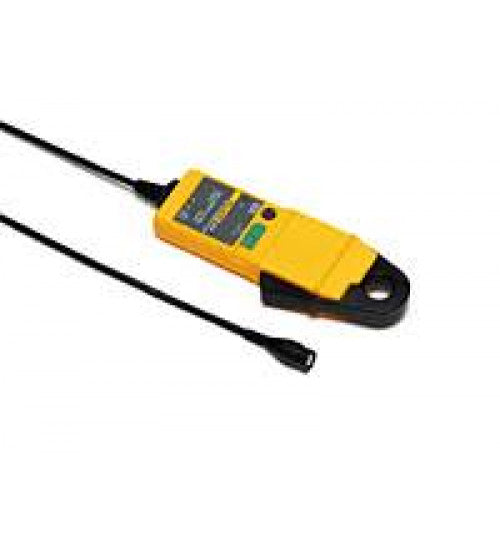

The i30s current clamp is based on Hall Effect technology for use in measurement of both DC and AC current. The i30s may be used in conjunction with oscilloscopes and other suitable recording instruments for accurate non-intrusive current measurement.

Electrical specifications
Specified current range	30 mA to 30 A DC, 30 mA to 20 A AC rms
Usable current range	5 mA to 30 A DC, 30 mA to 20 A AC rms
Crest factor	1.4 in
Output sensitivity	100 mV/A
Accuracy (at +25°C)	±1% of reading ±2 mA
Resolution	±1 mA
Load impedance	> 100 kΩ
Conductor position sensitivity	±1% relative to center reading
Frequency range	DC to 100 kHz (-0.5 dB)
Phase shift below 1 kHz	< 2°
Temperature coefficient	±0.01% of reading / °C
Power supply	9 V Alkaline, MN1604/PP3, 30 hours, low battery indicator
Working voltage (see Safety Standards section)	300 V AC rms or DC
General Specifications
Maximum conductor size	19 mm diameter
Output connection	Safety BNC connector, supplied with safety 4 mm adapter
Output zero	Manual adjust via thumbwheel
Cable length	2 m
Operating temperature range	0°C to +50°C
Storage temperature range (with battery removed)	-20°C to +85°C
Operating humidity	15% to 85% (non-condensing)
Weight	250 g
Safety standards	BS EN 61010-1: 2001
	BS EN 61010-2-032: 2002
	BS EN 61010-031: 2002
	300 Vrms, Category III, Pollution Degree 2
	Use of the probe on uninsulated conductors is limited to 300 V AC rms or DC and frequencies below 1 kHz
EMC standards	EN 61326: 1998 +A1, A2, and A3
