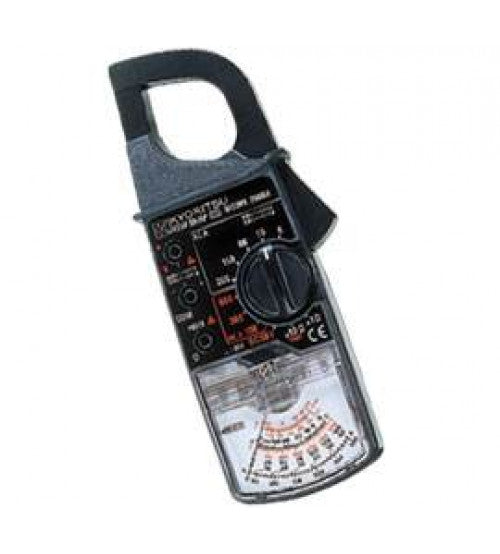

Analogue Clamp Meters

Product description

DC voltage range is also available especially for checking emergency battery operated power supply.
•	Can measure temperature using optional probe.
•	Tear drop shaped transformer jaws for ease of use.

AC A	6/15/60/150/300A ±3% of FS
AC V	150/300/600V ±3% of FS
DC V	60V ±3% of FS
Ω	1/10kΩ (25/250Ω mid-scale) \|±2% of scale length
Temperature	-20ºC - +150ºC (with the use of Temperature Probe 7060) \|±5ºC (0ºC - +100ºC) \|±10ºC (other ranges)
Conductor Size	Ø33mm max.
Frequency Response	50Hz/60Hz
Safety Standard	IEC 61010-1 CAT III 300V Pollution Degree 2 IEC 61010-2-031 IEC 61010-2-032
Withstand Voltage	3700V AC for 1 minute
Power Source	R6 (AA) (1.5V) × 1
Dimensions	193(L) × 78(W) × 39(D)mm
Weight	275g approx.
Accessories	7066A (Test leads) 8923 (Fuse [0.5A/600V]) × 2 9097 (Carrying case) R6 (AA) × 1 Instruction Manual
Optional	7060 (Temperature probe) 8008 (Multi-Tran)
