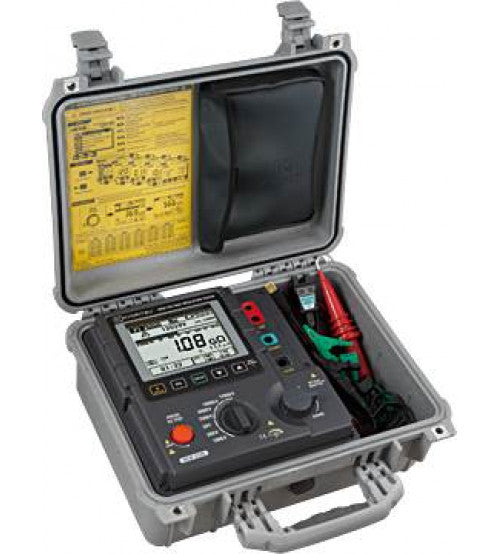

High Voltage Insulation Tester

Product description

Microprocessor controlled high voltage insulation resistance tester with Diagnostic functions.
•	Suitable for analyzing the insulation characteristics of cables, transformers, motors, generators, high-pressure switches, insulators, wiring installations, etc.
•	6 ranges: 500V, 1000V, 2500V, 5000V, 10000V, 12000V Fine adjustment of voltage setting at each range is also possible
•	Graphic representation of the insulation resistance and leakage current versus time on large display with bar graph and backlight.
•	Can be operated from built-in rechargeable battery or from AC line.
•	Automatic discharge after test with monitoring of the discharge voltage.
•	Internal memory can store about 43,000 data (max).
•	Robust design for field use with IP64 rating (with lid closed).

Insulation resistance (*): Accuracy is not guaranteed with setting of 250V or less

Rated voltage

500V

1000V

2500V

5000V

10000V

12000V

Max
measurement
value

500GΩ

1TΩ

2.5TΩ

5TΩ

35TΩ

Accuracy

400k - 50GΩ
±5%rdg±3dgt
(*)

800k - 100GΩ
±5%rdg±3dgt

2M - 250GΩ
±5%rdg±3dgt

4M - 500GΩ
±5%rdg±3dgt

8M - 1TΩ
±5%rdg±3dgt

50G - 500GΩ
±20%rdg
(*)

100G - 1TΩ
±20%rdg

250G - 2.5TΩ
±20%rdg

500G - 5TΩ
±20%rdg

1T - 10TΩ
±20%rdg
