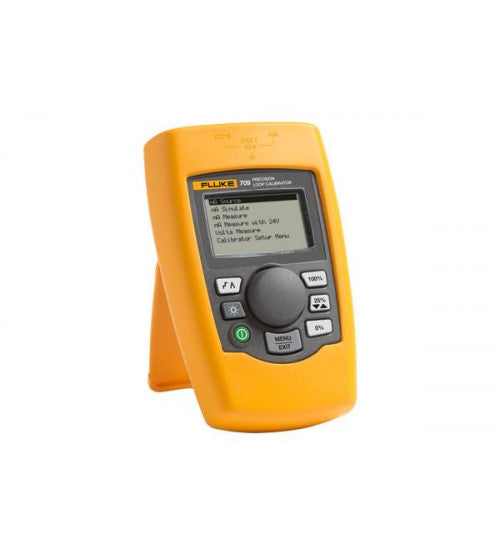

Fluke 709 Precision Loop Calibrator

Fluke 709 Precision Loop Calibrator

11,178.00 SR

Quantity (Please contact us to confirm product availability)

+ -

Product description

The Fluke 709 mA loop calibrator is designed to save time and produce high-quality results. This tool reduces the time it takes to measure, or source, voltage or current and power up a loop.

The Fluke 709 Precision Loop Calibrator is built around a user friendly interface with a Quick-Set rotary encoder knob. The protective holster easily fits into a technician’s hand and the large backlit display is easy to read, even in dark, cramped worked areas. The 709 offers:
- Best-in-class accuracy at 0.01% reading
- Small rugged design operates on (6) standard AAA batteries
- Intuitive user interface with Quick-Set knob for fast setup, easy use
- Built in selectable 250 Ω resistor for HART communication
- 24 V DC loop power with mA Measure Mode (-25% to 125%)
- Resolution of 1 µA on mA ranges and 1 mV on voltages ranges
- Simple two wire connection for all measurements
- Auto Shutdown to conserve battery life (adjustable up to 30 minutes)
- Variable step & ramp time in seconds
- Adjustable span selection (0 to 20 mA or 4 to 20 mA)
- Valve Test (simulate defined mA values with % keys)

Detailed Specifications
Functions	mA source, mA simulate, mA read, mA read/loop power, and volts read.
Ranges	mA (0 to 24 mA) and Volts (0 to 30 V DC)
Resolution	1 µA on mA ranges and 1 mV on voltage range
Accuracy	0.01% ± 2 counts, all ranges (@23° ± 5°C)
Operating temperature range	-10°C to 55°C (14°F to 131°F)
Humidity range	10 to 95% non-condensing
Stability	20 ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C
Display	128 x 64 pixels, LCD graphic w/backlight, .34 high digits
Power	6 AAA alkaline
Battery life	40 hours typical
Loop compliance voltage	24 V DC @ 20 mA
Over-voltage protection	240 V AC
Overload current protection	28 mA DC
EMC	EN61326 Annex A (Portable Instruments)
Dimensions (L x W x D)	15 x 9 x 3 cm (6 x 3.6 x 1.3 in)
Weight	0.3 kg (9.5 oz)
Included accessories	NIST traceable calibration certificate with data, batteries, test leads, and manual
Warranty	One year
