Product description
علبة وصلات ألياف بصرية CORNING 2179CS
علبة وصلات ألياف بصرية CORNING 2179CS مخصص لـتنظيم وحماية وصلات الألياف وفق مكونات العلبة وتعليمات تركيبها. راجع المواصفات والتوافق لتحديد ملاءمته لمهمتك قبل الشراء.
الهوية والاستخدام
- نوع المنتج: علبة وصلات ألياف بصرية.
- مرجع الاختيار: CORNING 2179CS.
- الاستخدام: تنظيم وحماية وصلات الألياف وفق مكونات العلبة وتعليمات تركيبها.
كيف تختار المنتج المناسب؟
اعتمد الموديل والمقاس ونوع التوصيل أو الملحقات المتوافقة، ولا تعتمد على تشابه الاسم وحده.
للمشترين في السعودية
قارن CORNING 2179CS لدى شركة الصندوق الآمن SafeBox وفق احتياجك الفني والمواصفات الموضحة، واستخدم رقم الموديل عند طلب مطابقة المنتج.
التفاصيل الفنية الأصلية
Port Accessory Exp. 2179CS XS003822417

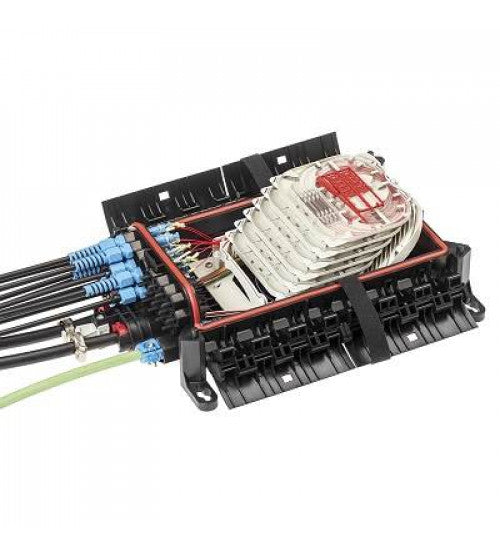

The BPEO (Box Protection for External Optical fibre) Evolution is the latest generation of fibre splice closure from 3M™ and is used for the protection of fibre splices in distribution and Fibre To The Home/Business (FTTH/B) applications.
Available with 2 standard end face configurations to suit network requirements the BPEO size 1.5 incorporates a 12 slot fibre management system and a tube storage space for mid span access on loose tube fibre cables. The fibre management system provides the flexibility required in today’s fibre deployments and can accommodate both fusion and mechanical splices as well as other passive components such as splitters.
The BPEO range also utilises the fully mechanical cable entries (ECAM’s) that can be prepared onto the cable away from the closure allowing for greater flexibility and do not require the use of heat, gel or compounds to complete a reliable cable seal.
Features
Watertight closure IP68
Easily re-enterable using standard tools
No re-entry kit required
ECAM type cable entries
Organiser with three management zones
12 slot organiser for swivel mounted cassettes
Fibres supported and managed into each tray position
Plugs on all inlet ports and test valves as standard
-
Loose tube storage area
Specifications
Sealing Rating IP68 (80 millibar continuous, 500 milibar flash test)
Impact Rating (20 Joules) IK10
Pull Force (tested on cables) 1000N
Size (H x W x D mm) - Housing Only 340 x 205 x 120
Volume < 6 Litre
Splice Capacity 144 fusion splice, 72 mechanical
Colour Black
Material Thermoplastic
Cable Ports - D18 - 6 to 18mm cable - Mid Span 1 (can accommodate 2 x S12)
Cable Ports - S18 - 5 to 18mm cable - Single FDP Branch – 2
Cable Port - S12 - 4 to 12mm cable - Single FDP Drop – 2
Cable Port - S9.5 - 3.5 to 9.5mm cable - Single FDP Branch – 13
Cable Port - S7 - 3 to 7mm cable - Single FDp Drop – 25
