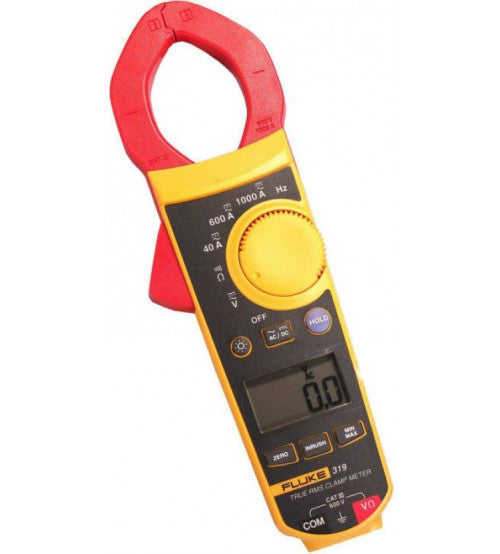

جهاز قياس تيار بالكلامب FLUKE 319

Home
/
categories
/
جهاز قياس تيار بالكلامب FLUKE 319

1,457.28 SR

Quantity (Please contact us to confirm product availability)

+ -

Product description

جهاز قياس تيار بالكلامب FLUKE 319

جهاز قياس تيار بالكلامب FLUKE 319 مخصص لـقياس الكميات الكهربائية المدعومة.

بيانات المنتج واستخدامه

نوع المنتج: جهاز قياس تيار بالكلامب.
العلامة الواردة في الملف: FLUKE.
الموديل أو المرجع: 319.
الاستخدام: قياس الكميات الكهربائية المدعومة.

إرشادات الاختيار

طابق الموديل والمقاس وحدود التشغيل ونوع التوصيل مع احتياجك. لا يُفترض توافق المنتج مع أجهزة أو ملحقات غير مذكورة في البيانات الأصلية.

التفاصيل الأصلية ومرجع المواصفات

Fluke 319 Digital Clamp Meter

Fluke 317/319 Clamp Meters The Fluke 317 and 319 are designed with ergonomic concepts, shaped to fit your hand and to access tight spots easily. These small and rugged clamp meters are ideally suited for current measurements up to 1000 A (319) in tight cable compartments. The Fluke 317and 319 also offer AC/DC current measurements and has a higher resolution for loads below 40 A. In addition to a compact package with a strong feature set, the Fluke 319 also equip with In-rush current and Frequency functions for testing motors, lighting, etc. 319 Electrical specifications Current AC Range 40.00 A, 600.0 A, 1000 A Resolution 0.01 A, 0.1 A, 1 A Accuracy 1.6% ±6 digit (50-60 Hz) {40 A} 2.5% ±8 digit (60-500 Hz) {40 A} 1.5% ±5 digit (50-60 Hz) {600/1000 A} 2.5% ±5 digit (60-500 Hz) {600/1000 A} Crest Factor add 2% into spec for CF > 2 3.0 Max @ 500 A, 2.5 Max @ 600 A, 1.4 Max @ 1000 A AC response rms Current DC Range 40.00 A, 600.0 A, 1000 A Resolution 0.01 A, 0.1 A, 1 A Accuracy 1.6% ±6 digit (40 A) 1.5% ±5 digit (600/1000 A) Voltage AC Range 600.0 V Resolution 0.1 V Accuracy 1.5% ±5 digit (20-500Hz) AC response rms Voltage DC Range 600.0 V Resolution 0.1 V Accuracy 1% ±4 digit Resistance Range 400.0 Ω 4000 Ω Resolution 0.1 Ω 1 Ω Accuracy 1% ±5 digit Continuity ≤ 30 Ω Inrush Integration time 100 ms Frequency Range 5.0 - 500.0 Hz Accuracy 0.5% ±5 digit Trigger Level 10 - 100 Hz ≥ 5 A, 5 - 10 Hz, 100 - 500 Hz ≥ 10 A The accuracy specifications aply at 73 °F ±41 °F (23 °C ±5 °C) Below 64 °F and above 82 °F (18 °C and above 28 °C) accuracy degrades at (0.1) times specification per °C. True rms for ac V and ac A accuracy is specified from 5% to 100% of range. Environmental specifications Operating temperature 14°F to 122°F (-10 °C to 50 °C) Storage temperature -40 °F to 140 °F (-40 °C to 60 °C) Operating humidity Non-condensing (< 50 °F) (< 10 °C) 90% RH (50 °F to 86 °F) (10 °C to 30 °C) 75% RH (86 °F to 104 °F) (30 °C to 40 °C) 45% RH (104 °F to 122 °F) (40 °C to 50 °C) (Without condensation) Operating altitude 1 mile (2000 meters) above mean sea level Storage altitude 7 miles (12,000 meters) above mean sea level IP Rating IP40 Vibration requirements Random MIL-PRF-28800F Class 2, 5-500 Hz, 30 minutes per axis Drop test requirements 3 ft (1 m) drop test, six sides, oak floor EMI, RFI, EMC Instrument unspecified for use in EMC field ≥ 0.1 V/m Temperature coefficients 0.1x (specified accuracy)/ °C (<64 °F or > 82° F) (<18 °C or > 28 °C) General specifications Digital display 6000 count resolution Low battery Indication Displays a signal when the batteries are below their required voltage Power source Three AAA IEC LR03 batteries Clamp opening size 1.45 in (37 mm) Jaw diameter 1.45 in (37 mm) Dimensions (L x W x H) 6.39 x 2.29 x 1.20 in (162.4 x 58.25 x 30.5 mm) Weight Approximately 13.5 oz (384 g) (batteries included) Auto range Available in Ohms Safety CE EN/IEC 61010-1 and IEC 61010-2-032 Measurement Category: 600V CAT III
