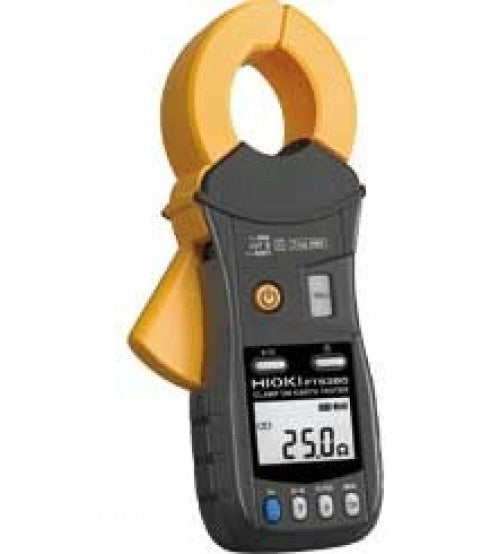

جهاز قياس تأريض بالكلامب HIOKI FT6380

جهاز قياس تأريض بالكلامب HIOKI FT6380 مخصص لـفحص التأريض وفق طريقة الجهاز وظروف الدائرة.

بيانات المنتج واستخدامه

• نوع المنتج: جهاز قياس تأريض بالكلامب.
• العلامة الواردة في الملف: HIOKI.
• الموديل أو المرجع: FT6380.
• الاستخدام: فحص التأريض وفق طريقة الجهاز وظروف الدائرة.

إرشادات الاختيار

طابق الموديل والمقاس وحدود التشغيل ونوع التوصيل مع احتياجك. لا يُفترض توافق المنتج مع أجهزة أو ملحقات غير مذكورة في البيانات الأصلية.

التفاصيل الأصلية ومرجع المواصفات

Clamp On Earth Tester Hioki FT6380

Product Overview The FT6380 measures grounding resistance simply by clamping to multiple-grounded ground wires. No auxiliary grounding rod is needed, and there is no need to disconnect the ground wire from the grounding rod. The compact, low-profile sensor can be used to clamp ground wires with ease, and also provide AC current measurement functionality and can measure currents ranging from leakage current on the order of several mA to load currents of up to 60 A. CAT IV 600V Key Features • Earth resistance measurement for multi-grounded systems • Measure leak current with absolute certainty with highly sensitive 0.01 mA resolution (at 20.00 mA range) • Measure load current up to 60.0 A range • Clamp at the narrowest point. Basic specifications Measurement principle Instrument has two cores for voltage injection and current measurement. From the defined voltage and measured current, the total circuit loop resistance is calculated Note: For multi grounded systems only. In a multi-grounded system, the larger the number of grounding poles, the more accurate the measured value. Earthing resistance range 0.20 Ω (0.01 Ω resolution) to 1600 Ω (20 Ω resolution), 10 ranges, Zero suppression: Less than 0.02 Ω, Accuracy: ±1.5 % rdg. ±0.02 Ω AC Current range 20.00 mA (0.01 mA resolution) to 60.0 A (0.1 A resolution), 5 ranges, Zero suppression: Less than 0.05 mA, Accuracy: ±2.0 % rdg. ±0.05 mA (30 Hz to 400 Hz, True RMS), Crest factor 5.0 or less (for the 60 A range, 1.7 or less) Max. allowable input 100 A AC continuous, AC 200 A for 2 minutes or shorter (at 50/60 Hz, requires derating at frequency) Max. rated voltage to earth 600 V AC CAT IV Memory function 2000 data Alarm function For resistance measurement and current measurement, Beeps when measured value is less than or greater than threshold Other functions Data hold, Backlight, Filter, Auto power save Display Digital LCD, max. 2000 dgt., Display refresh rate: 500 ms (2 times/s) Waterproof and dustproof IP40 (EN60529) with clamp sensor closed Communication interface N/A Power supply LR6 (AA) alkaline battery ×2, Max. rated power: 450 mVA, Continuous use : 35 hr (in-house testing conditions) Core jaw dia. φ 32 mm (1.26 in) Dimensions and mass 73 mm (2.87 in) W × 218 mm (8.58 in) H × 43 mm (1.69 in) D, 620 g (21.9 oz) Accessories Carrying case ×1, Resistance check loop (1 Ω, 25 Ω) ×1, Strap ×1, LR06 (AA) alkaline battery ×2, Instruction manual ×1
