Product description

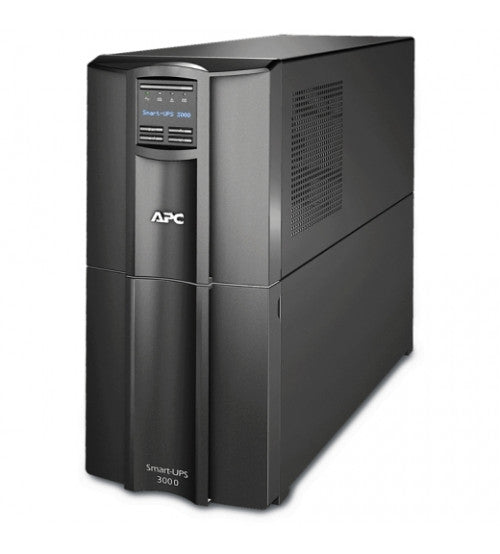

مزود طاقة غير منقطع UPS APC SMT3000IC
مزود طاقة غير منقطع UPS APC SMT3000IC مخصص لـتوفير طاقة احتياطية للأجهزة ضمن قدرة الوحدة.
بيانات المنتج واستخدامه
- نوع المنتج: مزود طاقة غير منقطع UPS.
- العلامة الواردة في الملف: APC.
- الموديل أو المرجع: SMT3000IC.
- الاستخدام: توفير طاقة احتياطية للأجهزة ضمن قدرة الوحدة.
إرشادات الاختيار
طابق الموديل والمقاس وحدود التشغيل ونوع التوصيل مع احتياجك. لا يُفترض توافق المنتج مع أجهزة أو ملحقات غير مذكورة في البيانات الأصلية.
مواصفات مختصرة من الملف
- القدرة الظاهرية: 3000 VA.
- الجهد المذكور: 230 فولت.
التفاصيل الأصلية ومرجع المواصفات
APC Smart-UPS 3000VA LCD 230V with SmartConnect
Output Max Configurable Power (Watts) 2.7kWatts / 3.0kVA Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage Output Voltage Distortion Less than 5 % Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz Sync to mains Other Output Voltages 220, 240 Topology Line interactive Waveform type Sine wave Transfer Time 6 ms typical : 10 ms maximum Input Input frequency 50/60 Hz +/- 3 Hz Auto-sensing Input voltage range for main operations 151 - 302 Adjustable, 160 - 286V Number of Power Cords 1 Other Input Voltages 220, 240 Batteries & Runtime Battery type Lead-acid battery Typical recharge time 3hour(s) Replacement Battery RBC55 Expected Battery Life (years) 3 - 5 RBC Quantity 1 Battery Charge Power (Watts) 271Watts Extendable Run Time 1 Battery Volt-Amp-Hour Capacity 816 Runtime View Runtime Graph View Runtime Chart Efficiency View Efficiency Graph Communications & Management Interface Port(s) SmartSlot, USB Control panel Multifunction LCD status and control console Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays Emergency Power Off (EPO) Yes Available SmartSlot™ Interface Quantity 1 Surge Protection and Filtering Surge energy rating 365Joules Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 Physical Maximum Height 435MM, 43.5CM Maximum Width 197MM, 19.7CM Maximum Depth 544MM, 54.4CM Net Weight 52.5KG Shipping weight 63.7KG Shipping Height 699MM, 69.9CM Shipping Width 381MM, 38.1CM Shipping Depth 762MM, 76.2CM Color Black Units per Pallet 9.0 Environmental Operating Temperature 0 - 40 °C Operating Relative Humidity 0 - 95 % Operating Elevation 0 - 3048meters Storage Temperature -15 - 45 °C Storage Elevation 0 - 15240meters Audible noise at 1 meter from surface of unit 53.0dBA Online thermal dissipation 375.0BTU/hr Conformance Approvals CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE Standard warranty 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available Sustainable Offer Status RoHS Compliant
