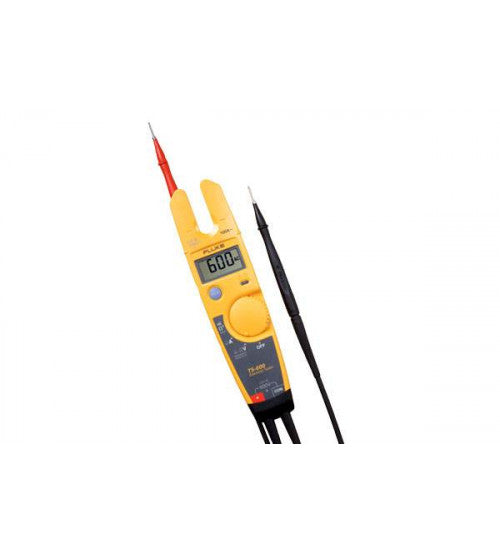

Fluke T5-600 Voltage, Continuity and Current Tester

Home
/
categories
/
Fluke T5-600 Voltage, Continuity and Current Tester

Fluke T5-600 Voltage, Continuity and Current Tester

883.20 SR

Quantity (Please contact us to confirm product availability)

+ -

Product description

The Fluke T5 Electrical Testers let you check voltage, continuity and current with one compact tool. With the T5, all you have to do is select volts, ohms, or current and the tester does the rest. OpenJaw™ current lets you check current up to 100A - without breaking the circuit. Its tough test leads stow neatly in the back of the tester, making it easy to tote the T5 in your tool pouch. Detachable SlimReach™ test probes are customized for national electrical standards. The test leads accept optional accessories such as clips and specialty probes. The optional H5 holster lets you clip the T5 onto your belt.

Automatically measures volts AC and volts DC with precise digital resolution
Displays resistance to 1000 Ω
Easy and accurate OpenJaw™ current measurement
Continuity beeper
Compact design with neat probe storage
Rugged enough to withstand a 10 ft (3 m) drop
Detachable SlimReach™ probe tips are customized for national electrical standards
Test leads accept Fluke accessory test clips
600 V model
Can stay connected much longer than solenoid type tester
Auto off mode to conserve battery life
Optional holster attaches to a belt and neatly stows test leads
AC current
Display hold

Safety Conformance

All inputs of the T5-600 are protected to EN61010-1 CAT III 600V. UL, CSA and VDE listed.

Specifications
Jaw opening	12.9 mm (0.5 in)
Max wire size	1/0 THHN Cable
Current range AC rms	0 to 100.0 A
Accuracy AC current (50/60 Hz)	3% ± 3 counts
AC response	Averaging
Voltage range AC/DC	0 to 600 V
Voltage accuracy	AC	1.5% ± 2 counts
	DC	1% ± 1 count
Resistance range	0 to 1000 Ω
Continuity beeper threshold	On at < 25 Ω, off at > 400 Ω
Volts indicator LED threshold	Guaranteed on by 30 V AC
Environmental Specifications
Operating temperature	-10°C to 50°C
Storage temperature	-30°C to 60°C
Humidity (without condensation)	0% to 95% (5°C to 30°C); 0% to 75% (30°C to 40°C); 0% to 45% (40°C to 50°C)
Dust/water resistance	Yes
Operating altitude	2000 meters max
Temperature coefficient	0.1 x (specified accuracy)/°C (< 18°C or > 28°C)
Safety Specifications
Overvoltage category	CAT III 600 V AC/DC (EN61010-1)
Agency approvals	UL, CSA, and VDE
Maximum voltage	Between any terminal and earth ground
Mechanical and General Specifications
Size	30.5 x 51 x 203 mm
Weight	300 g
Warranty	Two-years
Battery life	200 hour zinc chloride, 400 hour alkaline
Battery type	2 x AA
Low battery indicator	Yes
Current sensor opening	12.9 mm
Calibration cycle	1 year
Test leads	Type	Heavy duty, flexible leads rated for 1000 V use.
		Field replaceable leads terminate in male shrouded banana plugs
	Probes	One red, one black.
		Detachable Slim-Reach™ probe tips
	Styles	TP1 Slim Reach™ Test Probes

Title

Fluke T5-600 Data Sheet Download
