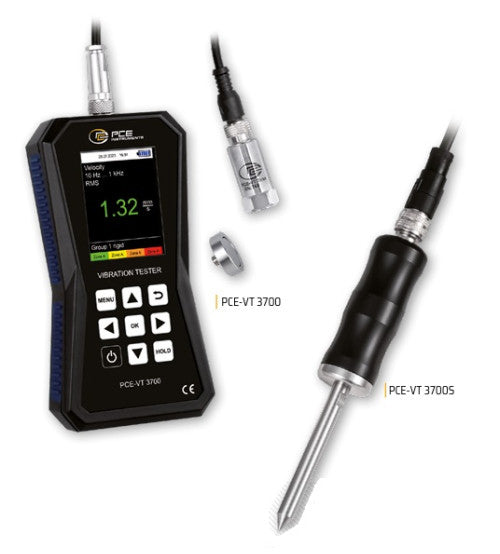

جهاز قياس اهتزاز PCE Instruments PCE-VT 3700 / PCE-VT 3700S

جهاز قياس اهتزاز PCE Instruments PCE-VT 3700 / PCE-VT 3700S مخصص لـفحص اهتزاز المعدات ضمن نطاق الجهاز.

بيانات المنتج واستخدامه

• نوع المنتج: جهاز قياس اهتزاز.
• العلامة الواردة في الملف: PCE Instruments.
• الموديل أو المرجع: PCE-VT 3700 / PCE-VT 3700S.
• الاستخدام: فحص اهتزاز المعدات ضمن نطاق الجهاز.

إرشادات الاختيار

طابق الموديل والمقاس وحدود التشغيل ونوع التوصيل مع احتياجك. لا يُفترض توافق المنتج مع أجهزة أو ملحقات غير مذكورة في البيانات الأصلية.

التفاصيل الأصلية ومرجع المواصفات

PCE-VT 3700 / PCE-VT 3700S: Vibration Meter

The vibration meter is ideal for maintenance workers to quickly check vibrating parts, machines and systems. This vibration meter shows the vibration acceleration, vibration velocity and vibration displace ment directly on the display. You can use the device to quickly and reliably detect machine imbalances which can lead to, for example, bearing damage. The vibration meter is equipped with a mode that allows a measurement according to ISO 10816-3 to be carried out. The vibration meter analyzes the measured values and automatically shows a good / bad evaluation on the display. The vibration meter is supplied with a sensor on a spiral cable, magnet adapter, service bag and batteries. The ISO factory certificate completes the scope of delivery. The vibration meter is ideal for maintenance workers to quickly check vibrating parts, machines and systems. This vibration meter shows the vibration acceleration, vibration velocity and vibration displace ment directly on the display. You can use the device to quickly and reliably detect machine imbalances which can lead to, for example, bearing damage. The vibration meter is equipped with a mode that allows a measurement according to ISO 10816-3 to be carried out. The vibration meter analyzes the measured values and automatically shows a good / bad evaluation on the display. The vibration meter is supplied with a sensor on a spiral cable, magnet adapter, service bag and batteries. The ISO factory certificate completes the scope of delivery. TECHNICAL SPECIFICATION Measuring range Acceleration 0.0 ... 399.9 m/s² Resolution 0.1 m/s² Accuracy @ 160 Hz ±2 % Frequency range 10 Hz ... 1 kHz 10 Hz ... 10 kHz Measuring range Velocity 0.00 ... 399.9 mm/s Resolution 0.1 mm/s Accuracy @ 160 Hz ±2 % Frequency range 10 Hz ... 1 kHz Measuring range Displacement 0.000 ... 3.9 mm Resolution 1 µm Accuracy @ 160 Hz ±2 % Frequency range 10 Hz ... 200 Hz Measurement parameters RMS, Peak, Peak-Peak Crest factor Units switchable metric / imperial Display 3.5" LC display Menu languages English, German, French Spanish, Italian, Dutch Portuguese, Turkish, Polish Russian, Chinese, Japanese Power supply 3 x 1.5 V AA batteries Operating and storage conditions -20 ... +65 °C / -4 ... 149 °F; 10 ... 95 % r.H. Dimensions 150 x 80 x 38 mm / 5.9 x 3.1 x 1.5" Weight 170 g / 6 oz Sensor PCE-VT 3700 Sensor with spiral cable PCE-VT 3xxx SENSOR Magnet adapter PCE-VT VMH Sensor PCE-VT 3700S Sensor with spiral cable PCE-VT 3xxx SENSOR Magnet adapter PCE-VT VMH Needle sensor PCE-VT NP Handgrip PCE-VT 3xxx HANDLE Technical data vibration sensor Resonance frequency 30 kHz Transverse sensitivity ≤5 % Destruction limit 5000 g (peak) Operating and storage temperature -20 ... +80 °C / -4 ... 176 °F; max. 95 % r.H. Housing material Stainless steel Mounting thread M5 Dimensions 16 x 36 mm / 0.6 x 1.4" Weight (without cable) 35 g / 1.2 oz
