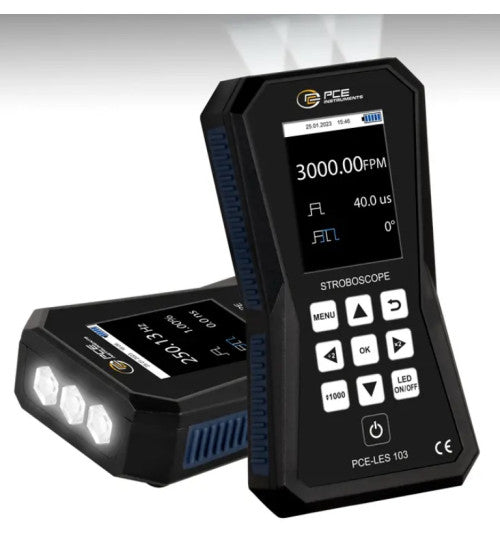

ستروبوسكوب LED PCE Instruments PCE-LES 103

ستروبوسكوب LED PCE Instruments PCE-LES 103 مخصص لـفحص حركة الأجزاء الدوارة باستخدام ومضات ضوئية.

بيانات المنتج واستخدامه

• نوع المنتج: ستروبوسكوب LED.
• العلامة الواردة في الملف: PCE Instruments.
• الموديل أو المرجع: PCE-LES 103.
• الاستخدام: فحص حركة الأجزاء الدوارة باستخدام ومضات ضوئية.

إرشادات الاختيار

طابق الموديل والمقاس وحدود التشغيل ونوع التوصيل مع احتياجك. لا يُفترض توافق المنتج مع أجهزة أو ملحقات غير مذكورة في البيانات الأصلية.

التفاصيل الأصلية ومرجع المواصفات

PCE-LES 103: Battery Powered LED Stroboscope (High Accuracy)

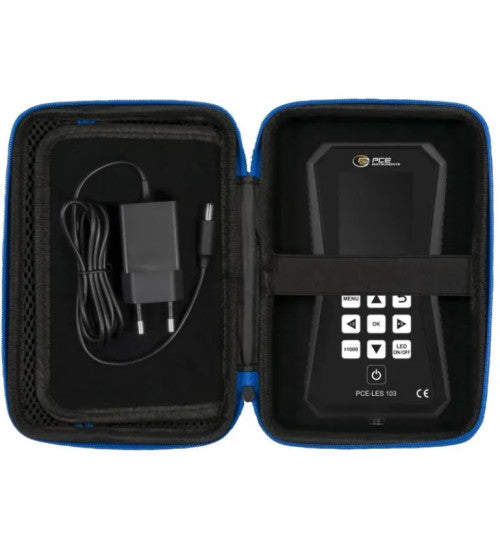

DESCRIPTION The motion analysis of rotating machines is quick and easy with our automotive tester / stroboscope. The automotive tester / stroboscope is equipped with 3 high-power LEDs, collectively producing a light intensity of 11,730 Lux at 20 cm / 1000 Hz. With the automotive tester / stroboscope, you can precisely adjust the flash frequency in both FPM and Hz. Additionally, it is compact, portable, and operates independently thanks to the built-in battery. The intuitive operation of the automotive tester / stroboscope is facilitated by the 10 buttons, enabling quick adjustments. The phase shift allows for a variable shift of the observation point. The pulse width controls the duration and, consequently, the intensity of the flash frequency. In the settings menu, you can choose the display brightness and set the display to turn off after a period of inactivity, extending the battery life. The automotive tester / stroboscope comes with a USB-C charging cable in a service pouch. The automotive tester / stroboscope is an indispensable tool for monitoring and inspecting manufacturing facilities, such as in the printing and textile industries. It is also useful for general maintenance and inspection tasks across all industrial sectors. The automotive tester / stroboscope also enables non-contact speed and vibration measurement: If the automotive tester / stroboscope flash frequency matches the motion frequency, the observed object appears stationary. HIGHLIGHTS - Brightness: 3 High Power LEDs - Flash frequency adjustable in FPM and Hz - 6160 lux at 30 cm / 1000 Hz - Digital pulse width modulation - Phase shift: -360° to +360° - Quick adjustment with x2 and ÷2 buttons - Intuitive control buttons and clear display SPECIFICATION Frequency Measurement Range +60 FPM ... +9999.99 FPM Resolution 0.01 FPM Accuracy 0.001% Frequency Measurement Range +10000 FPM ... +300000 FPM Resolution 0.1 FPM Accuracy 0.001% Frequency Measurement Range +1 Hz ... +5000 Hz Resolution 0.01 Hz Accuracy 0.001% General Technical Data Display Type TFT Color Display Display Size 2.8 inches Operating Time 4.5 hours Operating Time Additional Information at flash frequency 100 Hz, 1%, display brightness 70% Adjustable Auto Shutdown 2 ... 10 min. Auto Shutdown Deactivatable Yes Brightness 11730 lux @ 20cm @ 1000Hz 1% 6160 lux @ 30cm @ 1000Hz 1% 2650 lux @ 50cm @ 1000Hz 1% Light Color 6500 K Phase Shift -360 ... 360 ° Pulse Width 0.01 … 1% of pulse duration Resolution: 0.01% 0.01 º … 3.60 º of 360 º Resolution: 0.01 º Menu Language German, English, Spanish, French, Italian, Dutch, Turkish, Polish, Russian, Chinese Protection Class (Device) IP52 Power Supply 5V DC, 2A Weight 284 g Dimensions (L x W x H) 165 x 90 x 35 mm / 6,4 x 3,5 x 1,3 in Operating Conditions -20 ... 60 °C, 35 ... 85% r.H Storage Conditions -20 ... 60 °C, 35 ... 85% r.H Instruction Manual Languages German, English Batteries and Accumulators Type Lithium-Ion Battery Lithium Info Lithium in the product (built-in or included) Capacity 2200 mAh Voltage 7.4 V System Secondary: Rechargeable Battery / Accumulator Number 1
