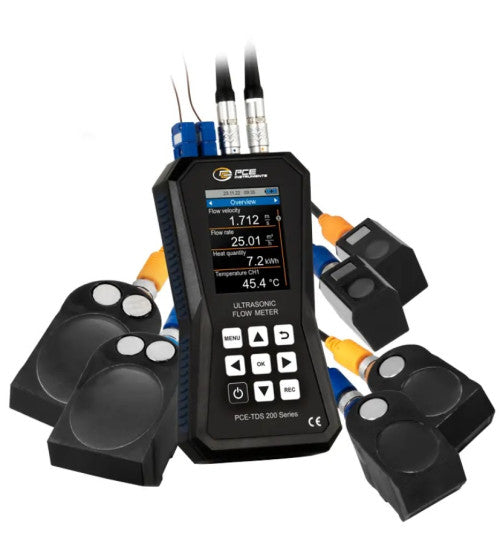

جهاز قياس تدفق بالموجات فوق الصوتية PCE Instruments PCE-TDS 200 SML

جهاز قياس تدفق بالموجات فوق الصوتية PCE Instruments PCE-TDS 200 SML مخصص لـقياس تدفق السوائل وفق الحساس والأنبوب المطابقين.

بيانات المنتج واستخدامه

• نوع المنتج: جهاز قياس تدفق بالموجات فوق الصوتية.
• العلامة الواردة في الملف: PCE Instruments.
• الموديل أو المرجع: PCE-TDS 200 SML.
• الاستخدام: قياس تدفق السوائل وفق الحساس والأنبوب المطابقين.

إرشادات الاختيار

طابق الموديل والمقاس وحدود التشغيل ونوع التوصيل مع احتياجك. لا يُفترض توافق المنتج مع أجهزة أو ملحقات غير مذكورة في البيانات الأصلية.

التفاصيل الأصلية ومرجع المواصفات

PCE-TDS 200 SML: Portable Ultrasonic Flow Meter with multiple sensors

DESCRIPTION The ultrasonic flowmeter has a measuring range of ±32 m/s. With an accuracy of ±1.5 % f.s. for a pipe diameter of DN ≥50, ±3.5 % f.s. for a pipe diameter of DN <50 and a reproducibility of ±0.5 % f.s., the ultrasonic flow meter is a particularly precise measuring device. An installation aid is available for installing the sensors of the ultrasonic flow meter. The installation aid graphically displays the signal quality of the ultrasonic flow meter. In addition, it is graphically displayed whether the sensors of the ultrasonic flow meter are positioned at the correct distance from each other. To carry out flow measurements with the ultrasonic flow meter, the flow velocity, the volume flow and the volume are displayed after entering the pipe and medium specifications. The ultrasonic flow meter displays the measured values in a wide range of units. For example: m³, l, gal, igl, mgl, cf, bal, ib and ob. HIGHLIGHTS - Measuring range ±32 m/s - USB-C interface for data transfer - Optional software for analyzing the measured values - Reproducibility ±0.5 % of measured value - Heat quantity measurement - Data memory for 10 million measuring points - individually adjustable alarm limits - optionally with ISO or DAkkS calibration certificate SPECIFICATION Flow measurement Measuring range ±32 m/s Accuracy 0,001 m/s Genauigkeit DN ≥50 mm: ±1.5 % rdg. for velocities > 0.3 m/s DN <50 mm: ±3.5 % rdg. for velocities > 0.3 m/s Reproducibility ±0.5 % of measured value Measuring method Z, V, N, W Medium - water - sea water - oil - crude oil - methanol - ethanol - diesel - petrol - petroleum - user defined (manual input of the sound velocity from the medium) All liquids with an impurity <5 % Pipe material - copper CU - steel FE - stainless steel VA - aluminium AL - brass ME - cast iron CI - iron FE - nickel NI - titanium TI - zink ZI - acrylic AC - polyethylene PE - polypropylene PP - polyvinyl chloride PVC - nylon NY - user defined (manual input of the transversal sound velocity of the pipe material) Inner pipe lining - no lining - user defined - epoxy resin - rubber - mortar - polystyrene PS - polyethylene PE - polytetrafluoroethylene PTFE - polyurethane PU - polypropylene PP - user defined (manual input of the longitudinal sound velocity of the inner lining of the pipe) Measurement parameters flow velocity, volume flow and volume Units (dimensions) mm, in Units (flow velocity) m/s, ft/s Units (volume flow) m³, l, gal, igl, mgl, cf, bal, ib, ob Time specification seconds, minutes, hours, days Units (volume) m³, l, gal, igl, mgl, cf, bal, ib, ob
