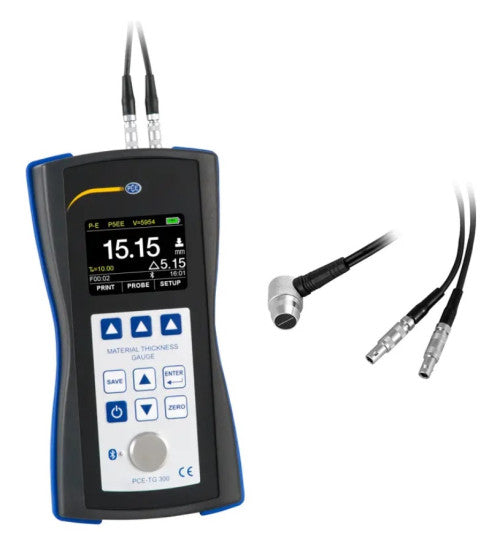

جهاز قياس سماكة بالموجات فوق الصوتية PCE Instruments PCE-TG 300-P5EE

جهاز قياس سماكة بالموجات فوق الصوتية PCE Instruments PCE-TG 300-P5EE مخصص لـقياس سماكة المواد الملائمة للمسبار ونطاق الجهاز.

بيانات المنتج واستخدامه

• نوع المنتج: جهاز قياس سماكة بالموجات فوق الصوتية.
• العلامة الواردة في الملف: PCE Instruments.
• الموديل أو المرجع: PCE-TG 300-P5EE.
• الاستخدام: قياس سماكة المواد الملائمة للمسبار ونطاق الجهاز.

إرشادات الاختيار

طابق الموديل والمقاس وحدود التشغيل ونوع التوصيل مع احتياجك. لا يُفترض توافق المنتج مع أجهزة أو ملحقات غير مذكورة في البيانات الأصلية.

التفاصيل الأصلية ومرجع المواصفات

PCE-TG 300-P5EE: Ultrasonic Thickness Gauge (600 mm ) w/ 5Mhz - 10mm dia Probe for thru coating measurement

DESCRIPTION The PCE-TG 300-P5EE is an ultrasonic thickness gauge with special sensors for various applications. In general, the wall thicknesses of all homogeneous materials can be measured with the thickness meter. For damping or scattering materials such as plastic or cast a special sensor is available. An angled 90° sensor also enables measurements at hard-to-reach measuring points. The speed of sound can be set freely on the thickness meter and thus adapted to a wide variety of materials. The measured values ​​are displayed directly on the easy-to-read TFT color display. Due to the internal memory, which can be read out via the optionally available software, different measuring points can be clearly stored. The non-destructive ultrasound measuring method enables the measurement even on end products. Thanks to the Echo-Echo working mode, even coated workpieces can be measured. HIGHLIGHTS - Large measuring range - Various sensors available - Battery operation - Error and voids detection - Internal measurement data memory - Print via Bluetooth SPECIFICATION PCE-TG-P5EE sensor Measuring range P-E: 2 ... 600 mm / 0.078 ... 23.62", E-E: 2.5 ... 100 mm / 0.098 ...3.937" Minimum diameter of pipes 20 x 3 mm / 0.787 ... 0.118" Frequency 5 MHz Diameter 10 mm / 0.39" Description normal measurement and E-E test PCE-TG 300-P5EE device Measuring range P-E: pulse-echo mode 0.65 ... 600 mm / 0.025 ... 23.62" (steel) E-E: Echo-Echo mode 2.50 ... 100 mm / 0.098 ... 2.36" Accuracy ±0.04 mm H[mm] (<10 mm); ±0.4 % H[mm] (>10 mm) H refers to the material thickness of the workpiece Resolution 0.1 mm / 0.01 mm / 0.001 mm (adjustable) Measurable materials metals plastics ceramics epoxy resin glass and all homogeneous materials Working modes Pulse-echo mode (fault and void detection) Echo-echo mode (hide layer thicknesses, e.g. paint) Calibration sound velocity calibration zero calibration two-point calibration View Mode Normal Mode, Scan Mode, Difference Mode Units mm / inch Data transfer printing via Bluetooth / USB 2.0 Memory non-volatile memory with 100 data groups with 100 data sets each Operating time continuous operation 100 h automatic stand-by mode (adjustable) auto power off mode (adjustable) Power supply 4 x AA battery 1.5 V Display 320 x 240 pixels TFT LCD color display with brightness adjustment Operating conditions 0 ... +50 °C / 32 ... 122 °F, ≤80 % RH non-condensing Storage conditions -20 ... +70 °C / -4 ... 158 °F, ≤80 % RH non-condensing Dimensions 185 x 97 x 40 mm / 7.2 x 3.8 x 1.5" Weight 375 g / 13.2 oz
