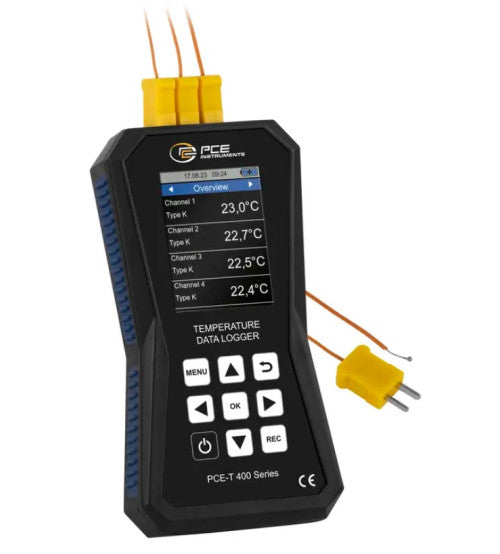

مسجل حرارة متعدد القنوات PCE Instruments PCE-T 420

مسجل حرارة متعدد القنوات PCE Instruments PCE-T 420 مخصص لـتسجيل قراءات حساسات الحرارة المدعومة.

بيانات المنتج واستخدامه

• نوع المنتج: مسجل حرارة متعدد القنوات.
• العلامة الواردة في الملف: PCE Instruments.
• الموديل أو المرجع: PCE-T 420.
• الاستخدام: تسجيل قراءات حساسات الحرارة المدعومة.

إرشادات الاختيار

طابق الموديل والمقاس وحدود التشغيل ونوع التوصيل مع احتياجك. لا يُفترض توافق المنتج مع أجهزة أو ملحقات غير مذكورة في البيانات الأصلية.

التفاصيل الأصلية ومرجع المواصفات

PCE-T 420: Four Channel High Accurate Temperature Logger

DESCRIPTION The 4-channel temperature data logger for thermocouples allows for the display and archiving of multiple temperature sensors simultaneously. It can be connected to up to 8 different types of thermocouples. Notably, the data logger offers high accuracy, especially with Type K thermocouples, with an accuracy of Type K ± (0.04% of reading + 0.3 K). The measurement overview of the 4-channel temperature data logger provides a quick overview of the 4 displayed temperatures. Another view displays the maximum, minimum, and average values since the start of measurement. Additionally, each channel can be compared with all other channels, showing the current measurement value of the channel and the difference from the reference channel. The 4-channel temperature data logger can store up to 100 data sets, each with a maximum of 100,000 readings. Adjustable alarm thresholds for upper and lower temperature values can highlight measurements in red. HIGHLIGHTS - Measurement range from -200 to +1800 °C - High accuracy of ± (0.04% of reading + 0.3 K) for Type K - Compatibility with 8 thermocouple types - Thermocouple types K, J, S, R, E, T, N, B - Storage for 10 million measurement values - Adjustable alarm limits - 4 input channels SPECIFICATION Temperature Type K Measurement Range -200°C ... +1370°C Resolution 0.1°C Accuracy ± (0.04% + 0.3°C) Temperature Type J Measurement Range -200°C ... +1050°C Resolution 0.1°C Accuracy ± (0.04% + 0.3°C) Temperature Type S Measurement Range 0°C ... +1750°C Resolution 0.1°C Accuracy ± (0.05% + 1°C) Temperature Type R Measurement Range 0°C ... +1750°C Resolution 0.1°C Accuracy ± (0.05% + 1°C) Temperature Type E Measurement Range -200°C ... +850°C Resolution 0.1°C Accuracy ± 0.6°C Temperature Type T Measurement Range -200°C ... +400°C Resolution 0.1°C Accuracy ± 0.6°C Temperature Type N Measurement Range -200°C ... +1300°C Resolution 0.1°C Accuracy ± 0.6°C Temperature Type B Measurement Range +600°C ... +1800°C Resolution 0.1°C Accuracy ± (0.05% + 1°C) General Technical Data Inputs 4 channels for Thermocouples Display Type LCD Units °C, °F, K Display Size 2.8 inches Memory Capacity 100 data sets up to 100,000 measurements per data set Memory Interval 1 ... 43,200 s Data Interface USB-C Power Supply USB 5V DC 500mA Battery Capacity 2,500 mAh Battery Voltage 3.7 V Battery Type Lithium-Ion Polymer Battery Operating Duration Approximately 15 ... 20 hours (depending on display brightness) Thermocouple Length Approximately 1 meter Menu Language English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese, Danish Protection Class IP52 Operating Conditions -20 ... 65°C, 10 ... 95% r.H. Dimensions 6.4 x 3.3 x 1.2 inch (L x W x H) Weight 255 g
