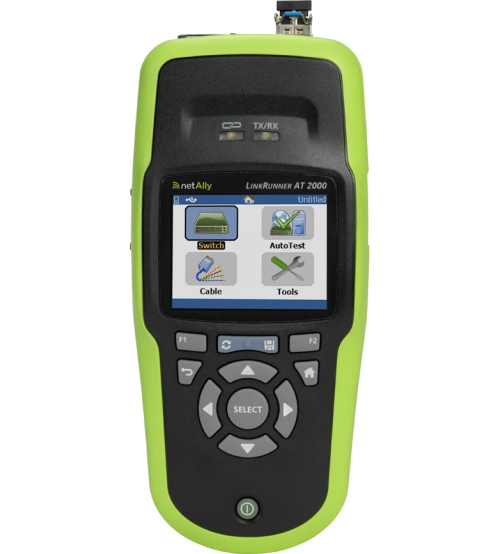

جهاز فحص شبكات وكابلات NetAlly LinkRunner AT 1000 + 2000

جهاز فحص شبكات وكابلات NetAlly LinkRunner AT 1000 + 2000 مخصص لـتشخيص توصيلات الشبكة وفق الواجهات والسرعات المدعومة.

بيانات المنتج واستخدامه

• نوع المنتج: جهاز فحص شبكات وكابلات.
• العلامة الواردة في الملف: NetAlly.
• الموديل أو المرجع: LinkRunner AT 1000 + 2000.
• الاستخدام: تشخيص توصيلات الشبكة وفق الواجهات والسرعات المدعومة.

إرشادات الاختيار

طابق الموديل والمقاس وحدود التشغيل ونوع التوصيل مع احتياجك. لا يُفترض توافق المنتج مع أجهزة أو ملحقات غير مذكورة في البيانات الأصلية.

التفاصيل الأصلية ومرجع المواصفات

LRAT 1000 + 2000 - LinkRunner AT - Network & Cable Tester

Key Features Use CDP/LLDP/EDP to find the nearest switch name and port information, and confirm link speed, duplex, and TCP/IP network connectivity with AutoTest. The LinkRunner AT can be used as a PoE load tester and test up to 30W 802.3af/at PSE using TruePower™ loaded Power over Ethernet (PoE) test. Quickly verify twisted-pair cable length and wire-map. Automate reporting and enable collaboration with upload and management test results via Link-Live™ . Perform twisted-pair/copper cable testing (LRAT-1000 and LRAT-2000 models) and fiber optic testing (LRAT-2000 only). Specifications General Dimensions 3.5 in x 7.8 in x 1.9 in (8.9 cm x 19.8 cm x 4.8 cm) Weight 18 oz (0.5 kg) Battery Removable, rechargeable lithium-ion battery pack (18.5 Watt-hrs) Battery Life Typical operating life is 6 hours; Typical charge time is 3 hours External AC Adapter/Charger AC input 90 to 264V AC 48 to 62 Hz input power DC output 15V DC at 1.2 Amps Display 2.8 in color LCD (320 x 240 pixels) Keypad 12-key elastomeric Tone Generator IntelliTone™ digital tone: [500 KHz]; analog tones: [400 Hz, 1 KHz] Media Access; Copper RJ-45: 10BASE-T, 100BASE-TX, 1000BASE-T and PoE (IEEE 802.3af and 802.3at) Media Access; Fiber SFP Adapter Port supports 100BASE-FX and 1000BASE-LX/ SX/ZX (LRAT-2000 Only) Cable Tests Pair lengths opens, shorts, splits, crossed, straight through, and cable ID Power over Ethernet (PoE) Single-ended testing: User-defined testing to IEEE 802.3at class 0, 1, 2, 3, 4 without LLDP negation, or 4 with LLDP negotiation The following PSE PoE parameters are measured: Pairs used Received class PSE type Unloaded voltage(V) Loaded voltage (V) (LRAT-2000 with TruePower™) Unloaded power (W) (LRAT-1000) Loaded power (W) (LRAT-2000 with TruePower™) Supporting Operating Systems Windows® 8.1 and Windows® 10 Minimum hardware requirement: Processor: 1 GHz or better CPU RAM: 1 GB or more Hard Disk: 1 MB available space Display: 1024 x 768 high color, 32-bit (recommended) Interface: USB Environmental Operating Temperature and Relative Humidity 32°F to 113°F (0°C to +45°C) Note: The battery will not charge if the internal temperature of the tester is above 113°F (45°C) Operating Relative Humidity (% RH without condensation) 90% (50°F to 95°F; 10°C to 35°C) 75% (95°F to 113°F; 35°C to 45°C) Storage Temperature -4°F to 140°F (-20°C to +60°C) Shock and Vibration Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop Safety EN 61010-1 2nd edition Safety (LR-AT 2000 only) EN/IEC 60825-1:2007, EN/IEC 60825-2:2004+ A1:2007 (LRAT- 2000 only) Altitude 4,000 m; Storage: 12,000 m EMC FCC Part 15 Class A, EN 61326-1 Certifications and Compliance Conforms to relevant European Union directives Conforms to relevant Australian standards Listed by the Canadian Standards Association LinkRunner AT Manager Software Supporting Operating Systems Windows® 8.1 and Window®10 Processor 1 Ghz or better RAM 1 GB or more Hard Disk 1 GB available space Display 1024 x 768 high color, 32-bit (recommended) Interface USB

ملاحظات المراجعة قبل النشر

السعر فارغ أو غير موجب؛ تعارض أو التباس في الموديل أو العلامة أو تكوين المنتج.
