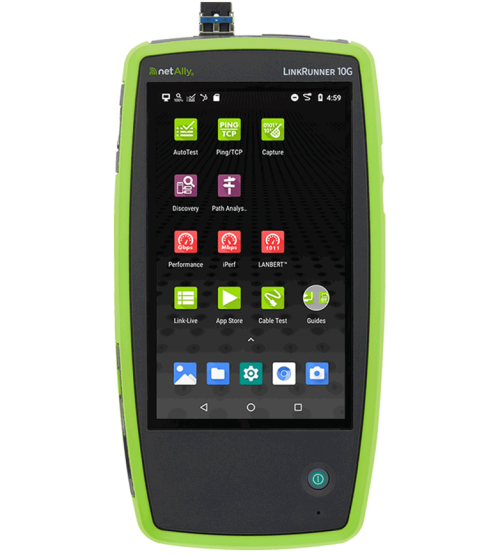

جهاز فحص شبكات وكابلات NetAlly LinkRunner® 10G

جهاز فحص شبكات وكابلات NetAlly LinkRunner® 10G مخصص لـتشخيص توصيلات الشبكة وفق الواجهات والسرعات المدعومة.

بيانات المنتج واستخدامه

• نوع المنتج: جهاز فحص شبكات وكابلات.
• العلامة الواردة في الملف: NetAlly.
• الموديل أو المرجع: LinkRunner® 10G.
• الاستخدام: تشخيص توصيلات الشبكة وفق الواجهات والسرعات المدعومة.

إرشادات الاختيار

طابق الموديل والمقاس وحدود التشغيل ونوع التوصيل مع احتياجك. لا يُفترض توافق المنتج مع أجهزة أو ملحقات غير مذكورة في البيانات الأصلية.

التفاصيل الأصلية ومرجع المواصفات

LinkRunner® 10G Portable 10G Ethernet NetworkTester

Key Features Install, test, verify, and troubleshoot Multi-Gig (NBASE-T) and 10G networks using 3rd party apps and purpose-built hardware. Layer 1-7 AutoTest helps technicians find network problems, while the periodic test mode monitors networks for intermittent issues, every minute for up to 24 hours. Two LinkRunner 10G units can be used to test network performance, capacity, QoS, and service provider SLAs between sites. The LANBERT™ Media Qualification app generates and measures line rate Ethernet frames over your network’s wired infrastructure (copper or fiber), qualifying its ability to support higher speeds. Automatically discover devices in your network and generate topology maps* using Link-Live; identifies changes, uncovers security threats, and helps you keep documentation up-to-date. Compatibility with standards-compliant SFPs enables testing and validation of wired media (copper or fiber) for various use cases. Line-rate capture up to 10Gbps ensures no packets are lost. Validate up to 90W 802.3bt with the TruePowerTM Power over Ethernet (PoE) test. Specifications General Dimensions 4.05 in x 7.67 in x 2.16 in (10.3 cm x 19.5 cm x 5.5 cm) Weight 1.68 lbs. (0.77 kg) Battery Rechargeable lithium-ion battery pack (7.2 V, 6.4 A, 46 Wh) Battery life Typical operating life is 3-4 hours; Typical charge time is 3 hours Display 5.0-inch color LCD with capacitive touchscreen (720 x 1280 pixels) Host Interfaces RJ-45 and SFP Analysis ports RJ-45 Cable Test and Management Port USB Type-A Port and USB Type-C On-the-Go Port SD Card Port Supports Micro SD card storage – up to 64GB supported Memory Approximately 8 GB available for storing test results and user applications, 1 GB packet capture buffer Charging USB Type-C 45-W adapter: 100-240 Vac, 50-60 Hz; DC Output Power 15 V (3 A) RJ-45: 802.3at PoE (25W) or higher Media Access Copper: 10M/100M/1G/2.5G/5G/10G Fiber SFP Adapters: 1G/10GBASE-X Supported IEEE Standards Wired: 802.3/ab/ae/an/bz/i/u/z PoE: 802.3af/at/bt, Class 0-8 and UPOE Cable Test Pair lengths, opens, shorts, split-pairs, crossed, straight through, and WireView ID
