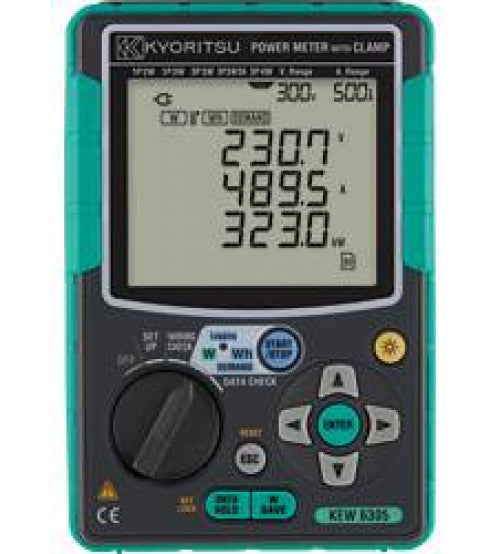

Compact Power Meter

Compact Power Meter

11,277.36 SR

اختر الكمية (يرجى التواصل معنا للتأكد من توفر المنتج)

+ -

تفاصيل المنتج

Comprehensive real-time monitoring, recording and analysis of single and 3-phase systems
•	Voltage, Current, Power Factor and Frequency measurements
•	Power analysis (Active, Apparent and Reactive power)
•	Energy analysis (Active, Apparent and Reactive power)
•	Active power accuracy: ±0.3%rdg±0.2%f.s.
•	Automatic wiring check function to prevent incorrect connections
•	Large memory capability (2GB) using built-in SD card interface
•	Real time & remote measurements using Android application
•	synchronous measurements between two units of KEW 6305
•	Wide selection of clamp sensors allow measurements from 0.1A to 3000A
•	The instrument automatically recognizes what kind of clamp sensor is connected to it

•	Windows software for data analysis and setting via USB port or Bluetooth

Free Android software "KEW smart 6305" is available on "Google Play Store" (*) Supporting Android ver. 2.2 - 4.4 WVGA (800 × 480) resolution or higher


(*)	Please search "KEW Smart" in Google Play Store. Communication charge may be incurred separately to download application.

Wiring connections

1P2W, 1P3W, 3P3W, 3P3W3A, 3P4W

Measurements

Voltage, Current, Frequency, Active power

Parameters

Apparent power, Reactive power, Active energy, Apparent energy,
Reactive energy, Power factor (cos θ), Neutral current

Voltage :

Ranges [RMS]

150.0 / 300.0 / 600.0V

Allowable input

10 - 110% of rating range

Display ranges

5 - 130% of each range

Accuracy

±0.2%rdg±0.2%f.s. (sine wave, 45 - 65Hz)
