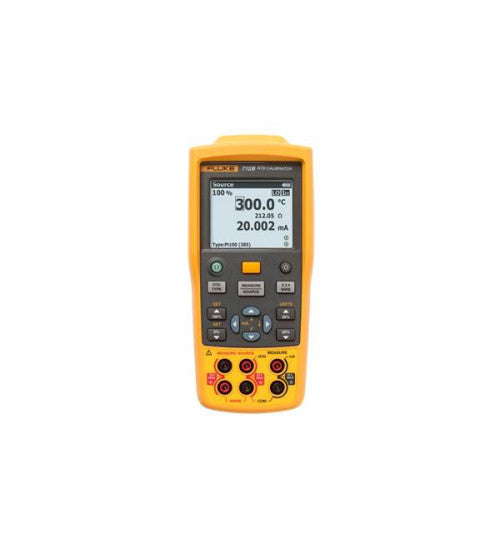

Fluke 712B RTD Calibrator

0.00 SR

اختر الكمية (يرجى التواصل معنا للتأكد من توفر المنتج)

+ -

تفاصيل المنتج

For the temperature calibration professional that wants a highly accurate, easy-to-use, single function RTD temperature calibrator the Fluke 712B is the ideal test tool.

- The 712B can measure and simulate (13) different RTD types and resistance
- Measure 4 to 20 mA signals while simultaneously sourcing a temperature signal
- Hanging tool designed in and included with every unit
- Configurable 0% and 100% source settings for quick 25% linearity checks
- Linear ramp and 25% step auto ramp based on 0% and 100% settings
- Dual inputs and backlit display for easy interpretation of measurements
- Power down settings remembered at power up for easy restart of tests
- 1-year and 2-year specifications and traceable certification of calibration

General Specifications
Maximum voltage applied between any terminal and earth ground or between any two terminals	30 V
Operating temperature	-10°C to 50°C
Storage temperature	-30°C to 60°C
Operating altitude	2,000 m
Storage altitude	12,000 m
Relative humidity (% RH operating without condensation)	Non condensing
	90% (10°C to 30°C)
	75% (30°C to 40°C)
	45% (40°C to 50°C)
	(Without condensation)
Vibration requirements	MIL-T-28800E, Class 2
Drop text requirements	1 m
IP Rating	IEC 60529: IP52
Electromagnetic environment	IEC 61326-1, Portable
Safety	IEC 61010-1, Max 30 V to earth, Pollution Degree 2
Power supply	4 AA NEDA 1.5A IEC LR6 batteries
Size (H x W x L)	52.5 x 84 x 188.5 mm
Weight	515 g
DC mA Measurement
Resolution	0-24 mA
Range	0.001 mA
Accuracy (% of reading + counts)	0.010% + 2 μA
Temperature coefficient	± (0.002% of reading + 0.002% of range) /°C ( < 18°C or >28°C)
Ohms Measurement
Ohms range	Accuracy (% of reading +counts)
0.00 Ω to 400.00 Ω	0.015% + 0.05 Ω
400.0 Ω to 4000.0 Ω	0.015% + 0.5 Ω
Read accuracy is based on 4-wire input. For 3-wire ohm measurements, assuming all three leads are matched, add 0.05 Ω (0.00 Ω~400.00 Ω), 0.2 Ω (400.0 Ω~4000.0 Ω) to the specifications.
Temperature coefficient	±(0.002% of reading + 0.002% of range) / °C (< 18°C or > 28°C)
Ohms Source
Ohms range	1.0 Ω to 400.0 Ω
	1.00 Ω to 400.00 Ω
	400.0 Ω to 1500.0 Ω
	1500.0 Ω to 4000.0 Ω
Excitation current from measurement device	0.1 mA to 0.5 mA
	0.5 mA to 3 mA
	0.05 mA to 0.8 mA
	0.05 mA to 0.4 mA
Accuracy (% of reading + counts)	0.015% + 0.1 Ω
	0.015% + 0.05 Ω
	0.015% + 0.5 Ω
	0.015% + 0.5 Ω
Resolution	0.00 Ω to 400.00 Ω		0.01 Ω
	400.0 Ω to 4000.0 Ω		0.1 Ω
Temperature coefficient	± (0.002% of reading + 0.002% of range) /°C ( <18°C or >28°C) Supports pulsed transmitters and PLCs with pulse times as short as 5 ms
RTD Input and Output
RTD Type (α)	Range (°C)	Measure (°C)			Source (°C)
		1-year	2-year	Source current	1-year	2-year
10 Ω Pt (385)	-200 to 100°C	1.5°C	3°C	1 mA	1.5°C	3°C
	100 to 800°C	1.8°C	3.6°C	1 mA	1.8°C	3.6°C
50 Ω Pt (385)	-200 to 100°C	0.4°C	0.7°C	1 mA	0.4°C	0.7°C
	100 to 800°C	0.5°C	0.8°C	1 mA	0.5°C	0.8°C
100 Ω Pt (385)	-200 to 100°C	0.2°C	0.4°C	1 mA	0.2°C	0.4°C
	100 to 800°C	0.015% +0.18°C	0.03% +0.36°C	1 mA	0.015% +0.18°C	0.03% +0.36°C
200 Ω Pt (385)	-200 to 100°C	0.2°C	0.4°C	500 μA	0.2°C	0.4°C
	100 to 630°C	0.015% +0.18°C	0.03% +0.36°C	500 μA	0.015% +0.18°C	0.03% +0.36°C
500 Ω Pt (385)	-200 to 100°C
