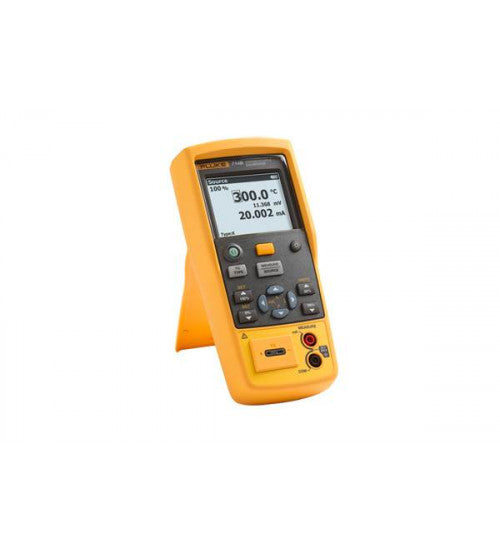

Fluke 714B Thermocouple Calibrator

Fluke 714B Thermocouple Calibrator

0.00 SR

اختر الكمية (يرجى التواصل معنا للتأكد من توفر المنتج)

+ -

تفاصيل المنتج

For the temperature calibration professional that wants a highly accurate, easy-to-use, single function thermocouple temperature calibrator the Fluke 714B is the ideal test tool.

- The 714B can measure and simulate (17) different thermocouple types and millivolts
- Measure 4 to 20 mA signals while simultaneously sourcing a temperature signal
- Hanging tool designed in and included with every unit
- Configurable 0% and 100% source settings for quick 25% linearity checks
- Linear ramp and 25% step auto ramp based on 0% and 100% settings
- Dual inputs and backlit display for easy interpretation of measurements
- Power down settings remembered at power up for easy restart of tests
- 1-year and 2-year specifications and traceable certification of calibration

General Specifications
Maximum voltage applied between any terminal and earth ground or between any two terminals	30 V
Operating temperature	-10°C to 50°C
Storage temperature	-30°C to 60°C
Operating altitude	2,000 m
Storage altitude	12,000 m
Relative humidity (% RH operating without condensation)	Non condensing 90% (10°C to 30°C) 75% (30°C to 40°C) 45% (40°C to 50°C) (Without condensation)
Vibration requirements	MIL-T-28800E, Class 2
Drop text requirements	1 m
IP Rating	IEC 60529: IP52
Electromagnetic environment	IEC 61326-1, Portable
Safety	IEC 61010-1, Max 30 V to earth, Pollution Degree 2
Power supply	4 AA NEDA 1.5A IEC LR6 batteries
Size (H x W x L)	52.5 x 84 x 188.5 mm
Weight	515 g
DC mA Measurement
Resolution	Range	Accuracy (% of reading + counts)
0-24 mA	0.001 mA	0.010% + 2 μA
Temperature coefficient	±(0.002% of reading + 0.002% of range) /°C (< 18°C or > 28°C)
Millivolt Measurement and Source
Resolution	Range	Accuracy (% of reading +counts)
-10 mV to 75 mV	0.01 mV	0.015% + 10 μA
Temperature coefficient	±(0.002% of reading + 0.002% of range) /°C (< 18°C or > 28°C)
Thermocouple Input and Output
TC Type	Range (°C)	Measure (°C)		Source (°C)
TC Type	Range (°C)	1 year	2 year	1 year	2 year
E	-250 to 200°C	1.3	2.0	0.6	0.9
	-200 to -100°C	0.5	0.8	0.3	0.4
	-100 to 600°C	0.3	0.4	0.3	0.4
	600 to 1000°C	0.4	0.6	0.2	0.3
N	-200 to -100°C	1.0	1.5	0.6	0.9
	-100 to 900°C	0.5	0.8	0.5	0.8
	900 to 1300°C	0.6	0.9	0.3	0.4
J	-210 to -100°C	0.6	0.9	0.3	0.4
	-100 to 800°C	0.3	0.4	0.2	0.3
	800 to 1200°C	0.5	0.8	0.3	0.3
K	-200 to -100°C	0.7	1.0	0.4	0.6
	-100 to 400°C	0.3	0.4	0.3	0.4
	400 to 1200°C	0.5	0.8	0.3	0.4
	1200 to 1372°C	0.7	1.0	0.3	0.4
T	-250 to -200°C	1.7	2.5	0.9	1.4
	-200 to 0°C	0.6	0.9	0.4	0.6
	0 to 400°C	0.3	0.4	0.3	0.4
B
