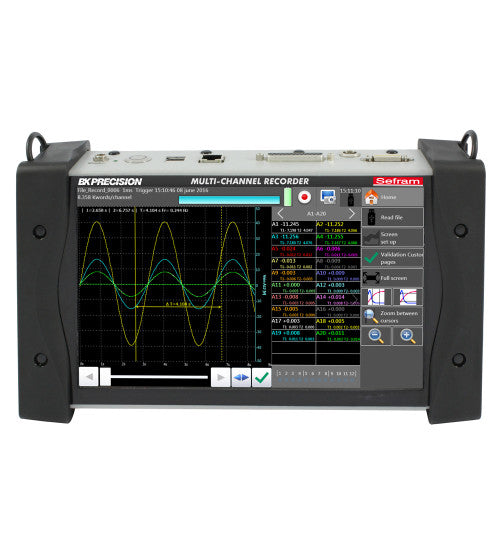

مسجل بيانات قياس BK Precision DAS240-BAT

مسجل بيانات قياس BK Precision DAS240-BAT مخصص لـجمع وتسجيل الإشارات عبر القنوات والوحدات المدعومة.

بيانات المنتج واستخدامه

• نوع المنتج: مسجل بيانات قياس.
• العلامة الواردة في الملف: BK Precision.
• الموديل أو المرجع: DAS240-BAT.
• الاستخدام: جمع وتسجيل الإشارات عبر القنوات والوحدات المدعومة.

إرشادات الاختيار

طابق الموديل والمقاس وحدود التشغيل ونوع التوصيل مع احتياجك. لا يُفترض توافق المنتج مع أجهزة أو ملحقات غير مذكورة في البيانات الأصلية.

التفاصيل الأصلية ومرجع المواصفات

Portable Multi-Channel Data Recorder

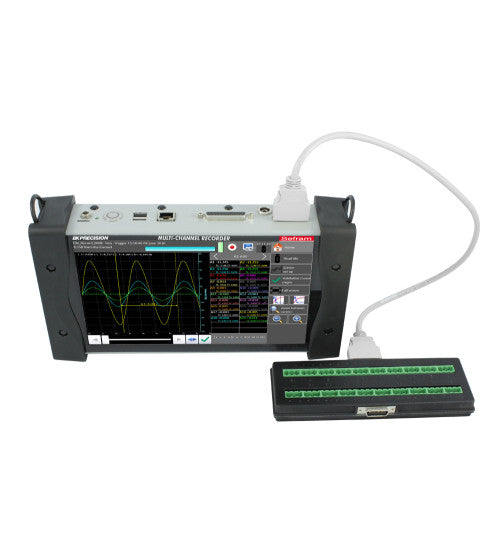

Overview The DAS240 series is ideal for measuring parameters commonly found in process applications including voltage, temperature (thermocouple and RTD), current, resistance, frequency and pulse. These multi-channel data loggers provide 20 universal analog channels with convenient screw input terminals that can be expanded up to 200 channels. The DAS240-BAT includes a built-in battery for up to 15 hours of autonomous operation. Measurement results can be viewed graphically and numerically on a 10-inch color touch screen and saved to internal solid-state memory or transferred to an external USB memory stick. Icon-driven menus make the DAS240 easy to navigate. The free Windows PC software allows users to remotely control and configure the recorder, transfer logging results and configuration files, and view live data in graphical or numerical format on a connected PC. Features and benefits: Compact and portable form factor suitable for remote and field use Extended battery life of up to 15 hours (-BAT only) Wide 10” touchscreen TFT display 20 universal analog input channels, expandable to 200 channels Versatile temperature measurements supporting 9 types of thermocouples and 2 or 3-wire Pt100 / Pt1000 temperature sensors DC Voltage ranges from ±0.5 mV to ±100 V Measure voltage to ±100 V, resistance to 10 kOhm and current (with optional shunt input-terminal block) 16-bit vertical resolution 32 GB internal solid-state memory WiFi monitoring and control (standard USB WiFi dongle required) 2 USB Host ports and 1 LAN interface Applications: Temperature logging with thermocouples and RTD’s Voltage measurements from ± 0.5 mV to ± 100 V (CAT I 100 V) 4 - 20 mA current loop measurements Frequency, pulse totalization and pulse rotation measurements, which can be expressed in RPM (rotations per minute
