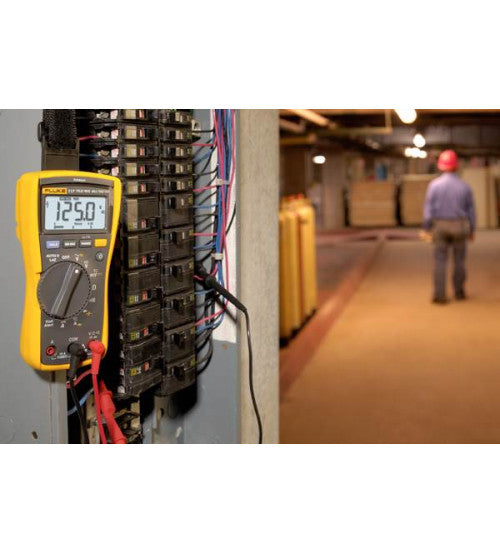

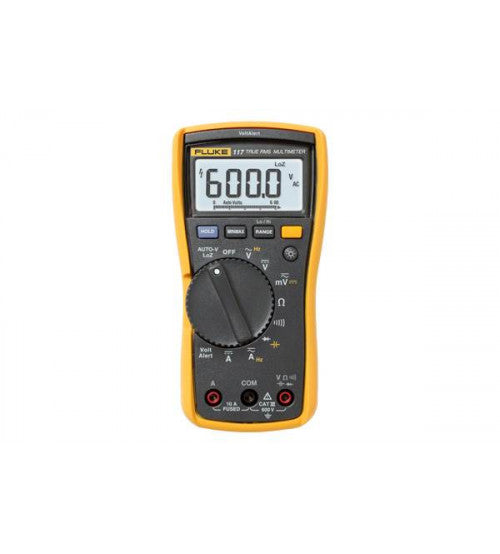

With its integrated non-contact voltage detection and the AutoV/LoZ function preventing false readings caused by ghost voltage, the Fluke 117 Electrician's Multimeter is the ideal multimeter for electricians. In fact, users around the world have said their 117 is an investment in accuracy. The Fluke 117 provides Min/Max/Average readings, measuring frequency and capacitance. With its easy-to-use design, the Fluke 117 will save you time, allowing you to move from job to job with ease.

Engineered and Tested with Your Safety on the Job in Mind

We test our 117 Multimeters for safe use in CAT III 600 V environments. This is the ideal meter for your electrical work because:

• The large white LED backlight helps you work in poorly lit areas
• VoltAlertTM technology gives you fact, go/no go non-contact voltage detection
• AutoVolt and Low Input Impedance modes provide faster, more accurate readings

• VoltAlert™ technology for non-contact voltage detection
• AutoVolt automatic AC/DC voltage selection
• Low input impedance: helps prevent false readings due to ghost voltage
• Large white LED backlight to work in poorly lit areas
• True RMS for accurate measurements on non-linear loads
• Measures 10 A (20 A overload for 30-seconds)
• Resistance, continuity, frequency and capacitance
• Min/Max/Average with elapsed time to record signal fluctuations
• Compact ergonomic design for one-handed operation
• Compatible with optional magnetic hanger (ToolPak™) for hands free operation
• CAT III 600 V safety rated

• Specifications
  Maximum voltage between any terminal and earth ground	600 V
  Surge protection	6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2
  Fuse for A input	11 A, 1000 V FAST Fuse (Fluke PN 803293)
  Display	Digital: 6,000 counts, updates 4 per second
  Bar graph	33 segments, updates 32 per second
  Operating temperature	-10°C to +50°C
  Storage temperature	-40°C to +60°C
  Battery type	9 volt Alkaline, NEDA 1604A / IEC 6LR61
  Battery life	400 hours typical, without backlight
  Accuracy Specifications
  DC millivolts	Range/resolution	600.0 mV / 0.1 mV
  	Accuracy	±([% of reading] + [counts]): 0.5% + 2
  DC volts	Range/resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.00 V / 0.1 V
  	Accuracy	±([% of reading] + [counts]): 0.5% + 2
  Auto volts	Range/resolution	600.0 V / 0.1 V
  	Accuracy	2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz)
  AC millivolts¹ True RMS	Range/resolution	600.0 mV / 0.1 mV
  	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
  AC volts¹ True RMS	Range/resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V
  	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
  Continuity	Range/resolution	600 Ω / 1 Ω
  	Accuracy	Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer.
  Ohms	Range/resolution	600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ
  	Accuracy	0.9% + 1
  	Range/resolution	40.00 MΩ / 0.01 MΩ
  	Accuracy	5% + 2
  Diode test	Range/resolution	2.00 V / 0.001 V
  	Accuracy	0.9% + 2
  Capacitance	Range/resolution	1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF
  	Accuracy	1.9% + 2
  	Range/resolution	> 1000 μF
  	Accuracy	5% + 20%
  Lo-Z capacitance	Range	1 nF to 500 μF
  	Accuracy	10% + 2 typical
  AC amps True RMS (45 Hz to 500 Hz)	Range/resolution	6.000 A / 0.001 A 10.00 A / 0.01 A
  	Accuracy	1.5% + 3 20 A continuous overload for 30 seconds max
  DC amps	Range/resolution	6.000 A / 0.001 A   10.00 A / 0.01 A
  	Accuracy	1.0% + 3 20 A continuous overload for 30 seconds max
  Hz (V or A input)²	Range/resolution	99.99 Hz / 0.01 Hz 999.99 Hz / 0.1 Hz 9.999 Hz / 0.001 Hz 50.00 Hz / 0.01 Hz
  	Accuracy	0.1% + 2
  1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. 2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. 2. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current. 2. Temperature Range/Resolution: -40°F to 752°F / 0.2°F.
  Mechanical and General Specifications
  Size	167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
  Weight	550 g
  Warranty	3 years
