Power Quality Logging, Electrical Load Studies and Energy Consumption Testing Made Easy

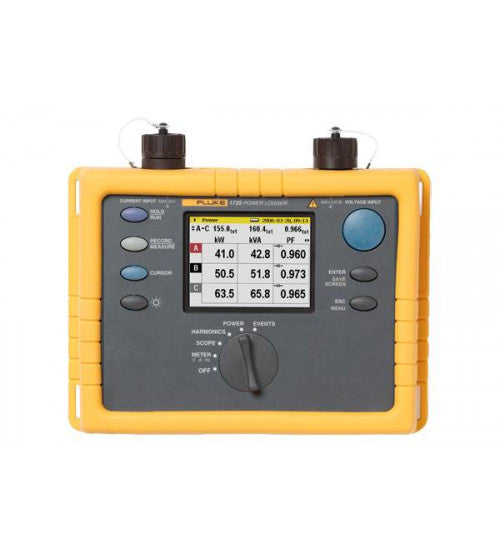

Fluke’s 1735 Three-Phase power data logger is Fluke's most versatile multi-purpose power quality and energy analyzer on the market for the price and is the ideal power meter for conducting energy studies and basic power quality logging. Set the Power Logger up in seconds with the included flexible current probes and color display. The power quality meter measures most electrical power parameters, harmonics, and captures voltage events.

Most Common Applications:

Load studies - verify electrical system capacity before adding loads
Energy assessments - quantify energy consumption before and after improvements to justify energy saving devices
Harmonics measurements - uncover harmonic issues that can damage or disrupt critical equipment
Voltage event capture - monitor for dips and swells that cause spurious resets or nuisance circuit breaker tripping

Record power and associated parameters for up to 45 days
Monitor maximum power demand over user-defined averaging periods
Prove the benefit of efficiency improvements with energy consumption tests
Measure harmonic distortion caused by electronic loads
Improve reliability by capturing voltage dips and swells from load switching
Easily confirm instrument setup with color display of waveforms and trends
Measure all three phases and neutral with included 4 flexible current probes
View graphs and generate reports with included Power Log software
Compact, rugged design with IP65 case, 600 V CAT III and two-year warranty

Specifications
General	Display	¼ VGA Graphic Color transmissive displays 320 x 240 Pixel with additional background lighting and adjustable contrast, text and graphics in color
	Quality	Developed, designed and manufactured according to DIN ISO 9001
	Memory	4 MB Flash memory, 3.5 MB for measuring data
	Interface	RS-232 SUB-D socket; 115.2 k Baud, 8 data bits, no parity, 1 stop bit, firmware updates are possible with the RS- 232 interface (9-pole extension cable)
	Sample rate	10.24 kHz
	Line frequency	50 Hz or 60 Hz, user-selectable, with automatic synchronization
	Power supply	NiMH battery-pack, with ac adapter (15 V to 20 V / 0.8 A)
	Operation time with battery	Typical > 12 hours without backlight and > 6 hours with backlight high
	Dimensions	240 x 180 x 110 mm
	Weight	1.7 kg, including battery
Ambient conditions	Working temperature range	-10°C to +50°C
	Storage temperature range	-20°C to +60°C
	Operating temperature range	0°C to +40°C
	Reference temperature range	23°C ±2°C
	The above terms are defined in European Standards. To calculate the specification at any point in the working temperature range, use the temperature coefficient below.
	Temperature coefficient	±0.1% of the measured value per°C from the reference
	Intrinsic error	Refers to reference temperature, maximum deviation is guaranteed for two years
	Operating error	Refers to operating temperature range, maximum deviation is guaranteed for two years
	Climatic class	C1 (IEC 654-1) -5°C to +45°C, 5% to 95% RH, no dew
	Housing	Cycoloy shock and scratch proof thermoplast V0-type (non-flammable) with rubber protection holster
EMC	Emission	IEC/EN 61326-1:1997 class B
EMC	Immunity	IEC/EN 61326-1:1997
Safety	Safety	IEC 61010-1 600 V CAT III, double or reinforced insulation, pollution degree 2
	Protection	IP65; EN60529 (refers only to the main housing without the battery compartment)
	Protection	RMS values are measured with a 20 ms resolution.
V-rms wye measurement	Measuring range	57 V/66 V/110 V/120 V/127 V/220 V/230 V/240 V/260 V/277 V/347 V/380 V/400 V/417 V/480 V AC
	Intrinsic error	±(0.2% of measured value + 5 digits)
	Operating error	±(0.5% of m. v. + 10 digit)
	Resolution	0.1 V
V-rms delta measurement	Measuring range	100 V/115 V/190 V/208 V/220 V/380 V/400 V/415 V/450 V/480 V/600 V/660 V/690 V/720 V/830 V AC
	Intrinsic error	±(0.2% of m. v. + 5 digit)
	Operating error	±(0.5% of m. v. + 10 digit)
	Resolution	0.1 V
A-rms measurement	Flexi set I ranges	15 A/150 A/3000 A rms (at sine)
	Current clamp ranges	1 A/10 A
	Resolution	0.01 A
	Ranges	150 A/3000 A and 1 A/10 A
	Intrinsic error	±(0.5% of m. v. + 10 digit)
	Operating error	±(1% of m. v. + 10 digit)
	Ranges	15 A
	Intrinsic error	±(0.5% of m. v. + 20 digit)
	Operating error	±(1% of m. v. + 20 digit)
		The errors of the current probes are not considered.
By using Flexi-set	Flexi Set measuring error	±(2% of m. v. + 10 digit)
	Position influence	±(3% of m. v. + 10 digit)
	CF (typical)	2.83
	When using Flexi Set please make sure to position the conductor opposite to the Flexi Set-lock
Power measurement (P - Active, S - Apparent, Q- Reactive, D - Distorting	Measuring range	see V rms and A rms measurement
		Power errors are calculated by adding the errors of voltage and current
		Additional error due to power factor PF
		Specified error x (1-[PF])
		Maximum range with voltage range 830 V delta-connection and 3000 A current range is 2.490 MW, higher displayed values possible when using PTs and CTs with ratio feature
	Intrinsic error	±(0.7% of m.v. +15 digit)
	Resolution	1 kW
	Operating error	±(1.5% of m.v. + 20 digit)
	Operating error	Typical range with voltage range 230 V wye connection and 150 A current range is 34.50 KW.
	Intrinsic error	±(0.7% of m.v. +15 digit)
	Resolution	1 W to 10 W
	Operating error	±(1.5% of m.v. + 20 digit)
	Operating error	The errors of the current sensors themselves have not been considered.
Energy measurement (kWh, KVAh, kVARh)	Intrinsic error	±(0.7% of m.v.+ F variation error* + 15 digit)
	Resolution	1 W to 10 W
	Operating error	±(1.5% of m.v. + F variation error1 + 20 digit)
